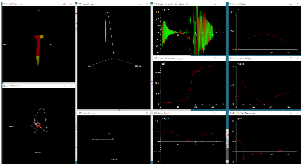

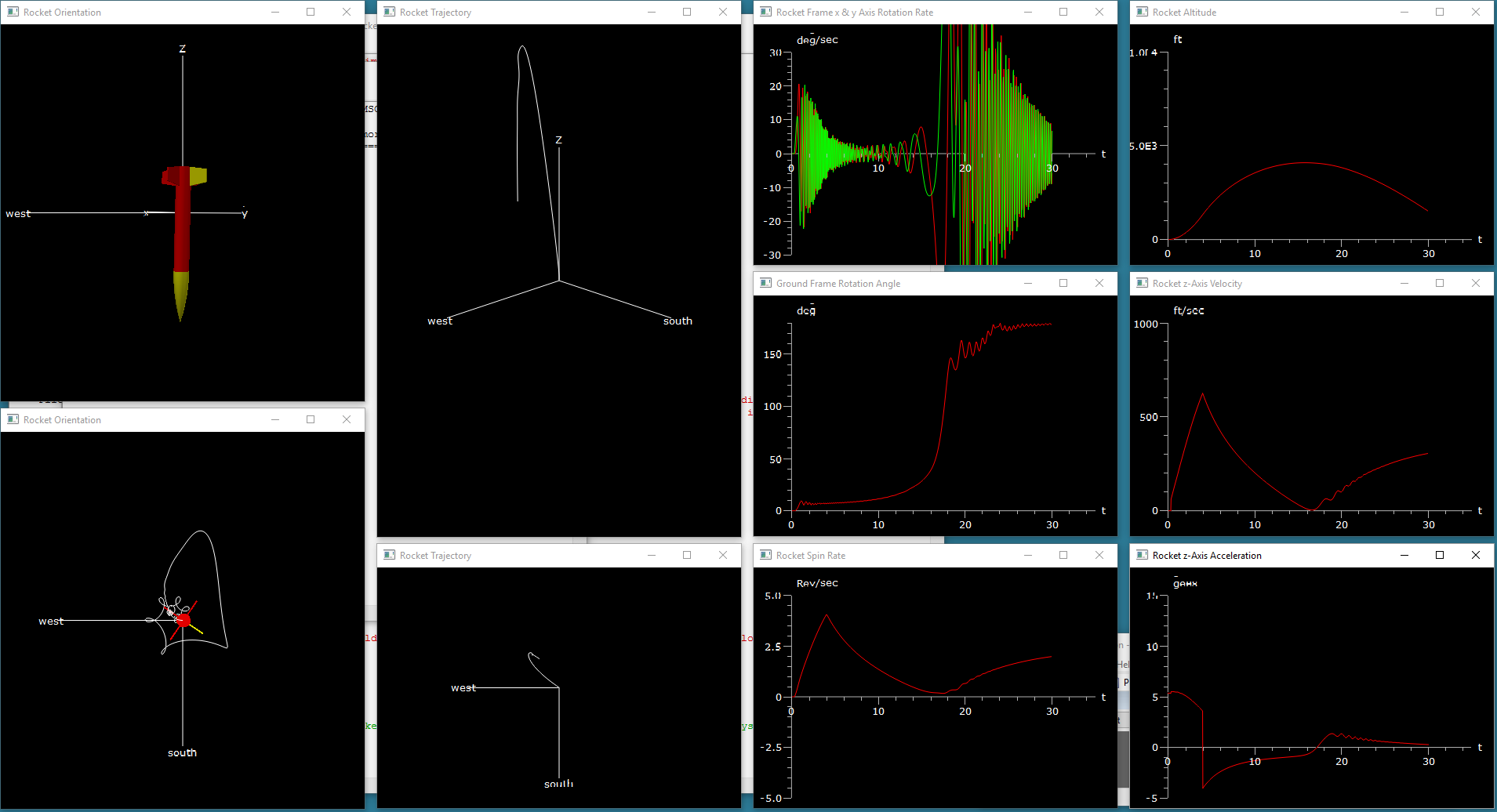

Here is the link to the Test Rocket 1 simulation visualization video. Click the picture at the left to enlarge a snapshot of the completed visualization.
The fins of Test Rocket 1 are canted, which causes the rocket to spin along its longitudinal axis. The spin causes coupling between the rockets minor axes, which causes the rocket to precess as a result seeing a step function of lateral wind at launch.
See the Flight Visualization page for more details on the Python visualization program.
Test Rocket 1 Simulation Visualization
Copyright © Thomas Fetter

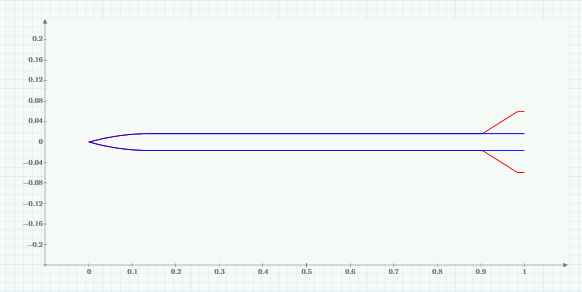

This is the plan-form for Test Rocket 1. It is a 93" long, 3" diameter rocket flying on a J135 motor. The fins are canted at 0.5 deg that cause the rocket to spin during its flight.

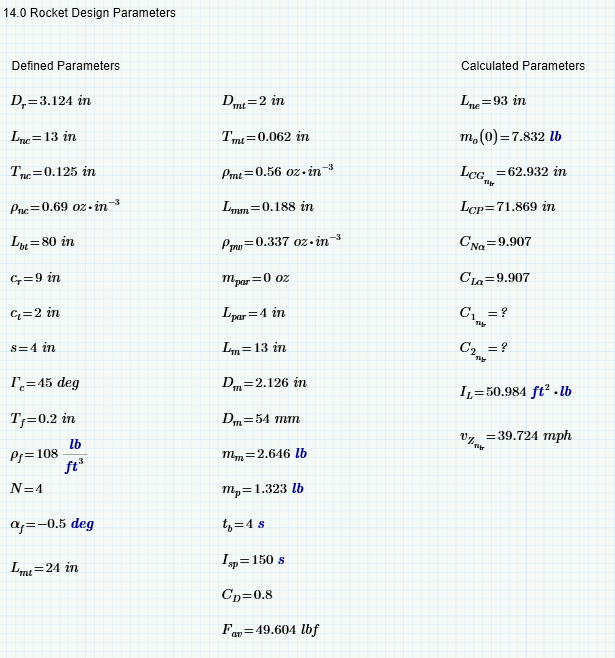

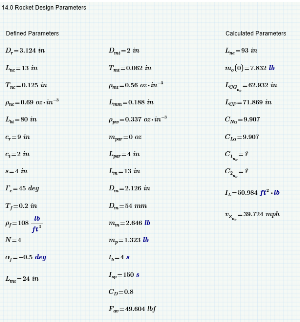

These are the key parameters for Test Rocket 1 uses for this simultion. Click image to enlarge.
